W12x35 is a rolled structural beam with wide flanges that is used in construction and other applications.
Table of Contents
W12x35 Beam Size and Dimensions

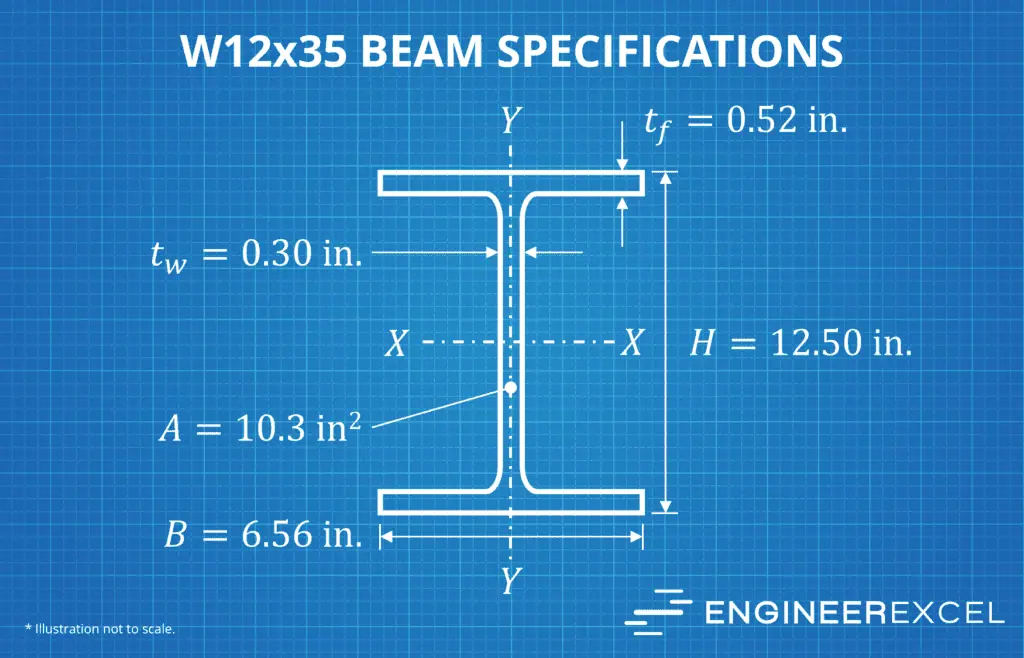

The dimensions and specifications of this structural steel beam are below:
| Depth | 12.5 in |
| Width | 6.56 in |
| Area | 10.3 in2 |
| Weight | 35 lb/ft |
| Web Thickness | 0.3 in |
| Flange Thickness | 0.52 in |
| Area Moment of Inertia | 283 in4 |
| Elastic Section Modulus | 45 in3 |

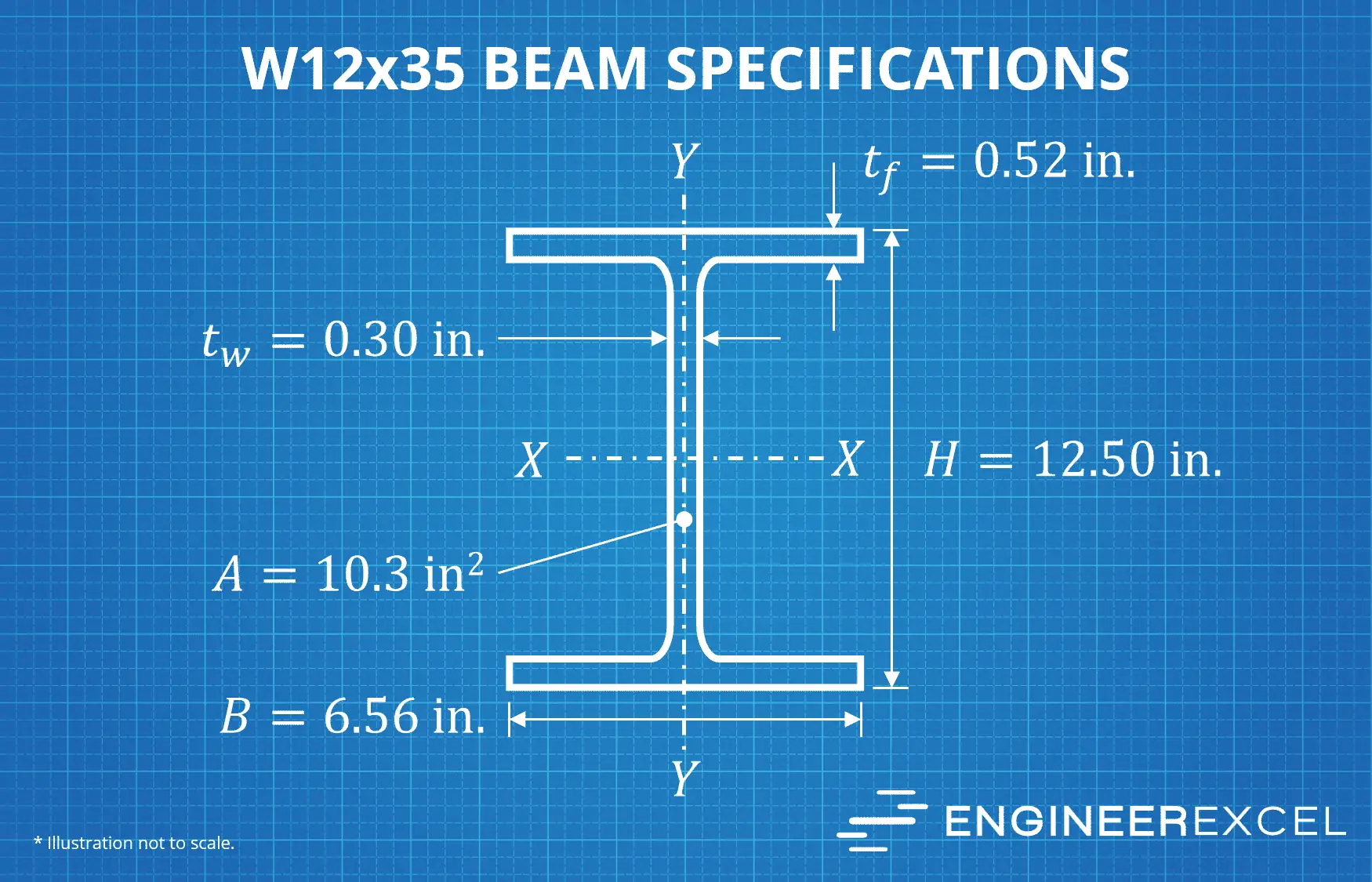

W12x35 Profile
The depth of W12x35 beams may vary by 1/8” above and below the nominal value.
The flange width may vary by 1/4” above nominal and 3/16” below nominal. Flanges may be out of square by as much as 5/16”.
The distance from the center of the web to the center of the profile may be no greater than 3/16”.
The radii of fillets and toes for W-beams are not specified. Instead, these dimensions are left up to individual manufacturers.
W12x35 Weight
Wide flange beams are designated by their depth x weight. The W12x35 designation indicates that the beam weighs 35 pounds per foot. A 10-foot section of W12x35 would weigh 350 pounds and a 50-foot section of W12x35 would weigh 1,750 pounds.
W12x35 Conversion to Metric
The metric equivalent to W12x35 is W310x52. This metric beam has the following specifications:
| Depth | 317 mm |
| Width | 167 mm |
| Area | 6650 mm2 |
| Weight | 52 kg/m |
| Web Thickness | 7.6 mm |
| Flange Thickness | 13.2 mm |
W12x35 Section Properties
W12x35 Area Moment of Inertia
The area moment of inertia (or second moment area) for a W12x35 beam about the x-axis (perpendicular to the flange) can be calculated from the equation below:
The area moment of inertia of the W12x35 profile about the x-axis is approximately 283 in4.
W12x35 Section Modulus
The elastic section modulus for a W12x35 beam about the X-axis is calculated from the following equation:
The elastic section modulus for the W12x35 profile about the X-axis is approximately 45 in3.
W12x35 Properties
The properties of W12x35 beams are specified by ASTM A6 “Standard Specifications for Rolled Structural Steel Bars, Plates, Shapes and Sheet Piling”
